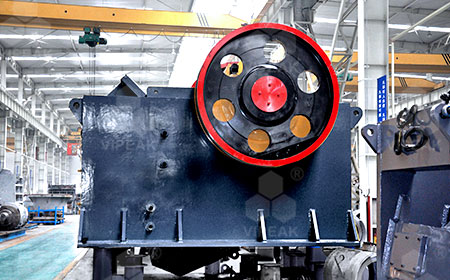

PE Jaw Crusher

Photo Album

Working Principle

The motor transmits power through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when moving jaw moves . So the moving jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.

{pboot:if(''=='')}

Maintenance tips

1The machine should be installed on the foundation of reinforced concrete. The weight of the foundation can be approximately 8-10 times that of the machine.

2The size of discharge outlet should be adjusted according to the stone size and production capacity.

3The machine is only allowed to start without load.
