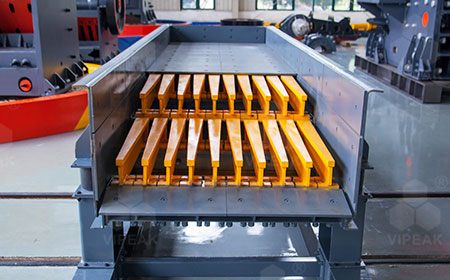

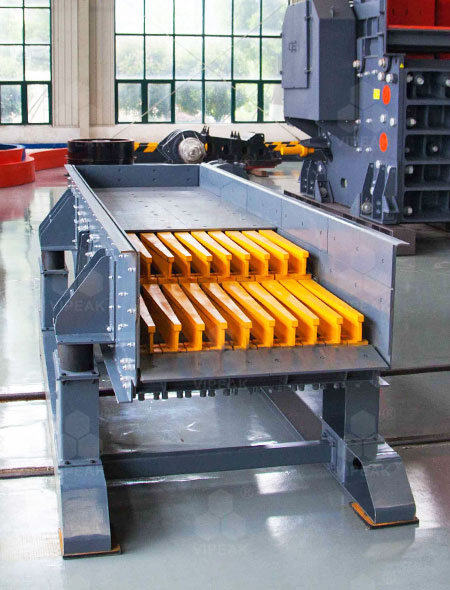

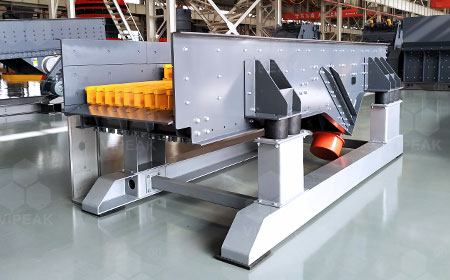

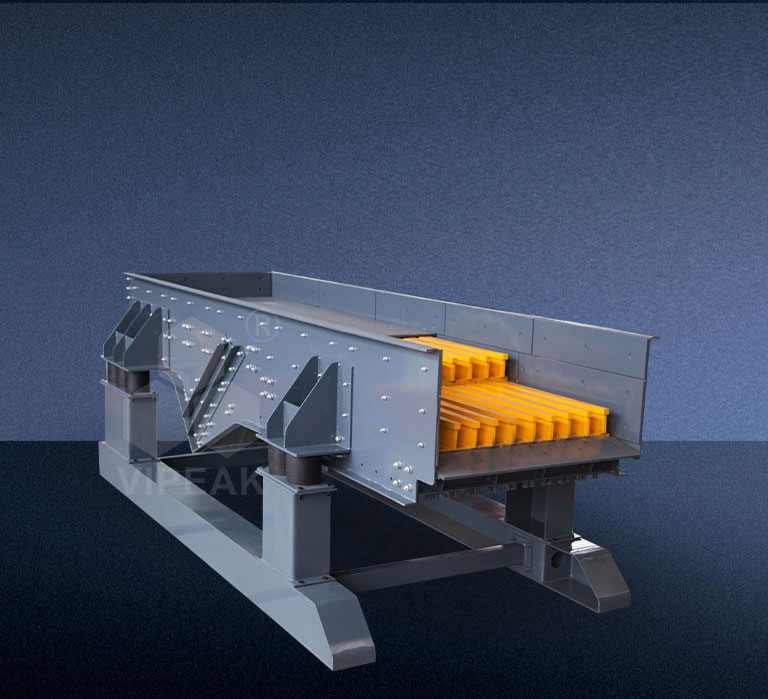

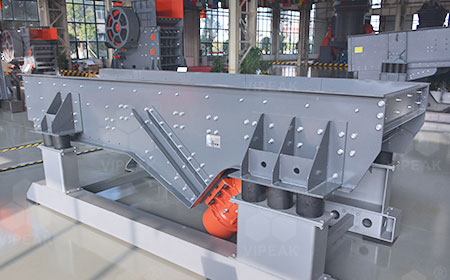

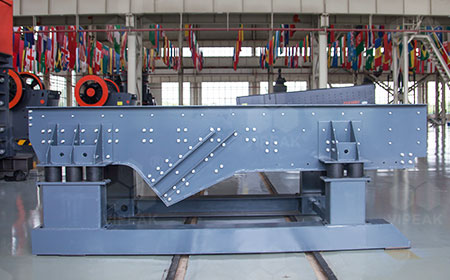

Photo Album

Working Principle

GF Vibrating Feeder is mainly driven by vibrating motor, which can force materials to move slowly towards the discharge end under the action of vibration. During which, because of the gap between grizzly bars, various sizes of materials will be separated primarily so that the granularity can be more balanced. Generally, there is a bar grizzly at the discharge end of the feeder which can screen out materials finer than the gap between bars and send large materials into the crusher. The feeder is installed on the support which is equipped with the rubber spring to hold vibration of the feeder. Feeding refers to convey materials as required. By regulating exciting force of the vibrating motor, the feeding volume can be controlled. The lower layer of grizzly bars under the feeder can screen materials once more.

Performance

Bigger Vibration Strength, Higher Capacity
G-force is a key index testifying the performance of vibrating machines. The bigger the vibration strength is, the higher the capacity would be. GF Vibrating Feeder adopts advanced design theories and manufacturing technologies. Its biggest vibration strength reaches 4.0G and its capacity is 20% higher than traditional TSW Feeder.
Taking Vibrating Motor as the Vibration Source Making Operation Stable & Convenient
GF Vibrating Feeder adopts a drop structure composed of two layers of grizzly bars, which can effectively screen out fine materials whose size is smaller than that of CSS (or tight-edge discharge port) because of double screenings. The removal rate of fine materials can be as high as 90%, greatly reducing the burden of primary crushers.
Taking Vibrating Motor as the Vibration Source Making Operation Stable & Convenient
GF Vibrating Feeder takes vibrating motor as the vibration source. Users can control vibration force by adjusting the vibrating motor according to actual needs. The operation is quite easy, convenient and stable.
Rubber Spring Boasting Higher Holding Capacity
Compared with traditional metal spring, the rubber spring GF Vibrating Feeder adopts owns higher holding capacity and longer service life. Besides, the whole operation is characterized by high stability, low noise and little shock to the foundation.
